Nadir Kernel

Nadir is an x86-64 kernel written from scratch. The name Nadir comes from the Arabic word naẓīr. In astronomy it means the point of lowest elevation, in opposition to the zenith. The documentation assumes general knowlege about how operating systems work.

Status of the project

The project is in its foundation phase and is not yet usable. The boot chain works: a BIOS boot sector loads the kernel, switches through 32-bit protected mode into 64-bit long mode, and runs C code (kmain) that prints to the screen. Next: interrupts (IDT), then memory management.

Getting started

Prerequisites

You need an assembler, a C toolchain, and an emulator:

• nasm assembles the boot sector and the long-mode entry stub.
• gcc, binutils (ld, objcopy) and make build the C kernel (gcc pulls in binutils on most distros).
• qemu-system-x86_64 runs the resulting image.

Install everything from your package manager:

Debian / Ubuntu

sudo apt install nasm qemu-system-x86 gcc make

Fedora

sudo dnf install nasm qemu-system-x86 gcc make

Arch Linux

sudo pacman -S nasm qemu-desktop gcc make

macOS (Homebrew)

brew install nasm qemu gcc make

Windows

I can only recommend using Linux distribution, but the Windows Subsystem for Linux is a valid path if you are exclusively running Windows. Install Ubuntu from the Microsoft Store, then run the Debian command above inside its terminal (QEMU's window renders automatically through WSLg).

Running the kernel

From the repository root:

make        # builds nadir.img
make run    # boots it in QEMU

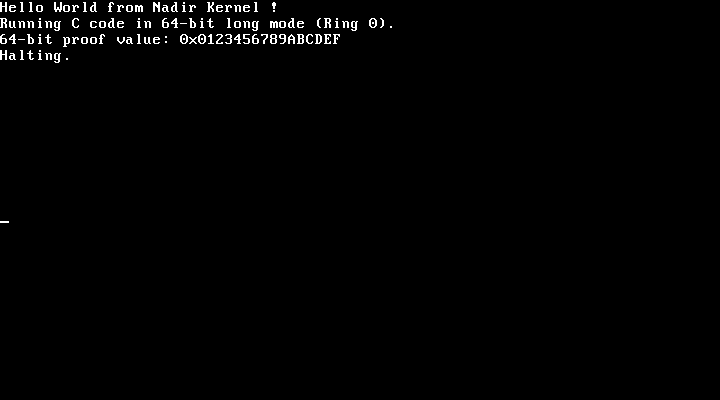

A QEMU window opens and you should see this:

Notes:

• nadir.img is a raw floppy image: the 512-byte boot sector first, then the kernel. -fda boots it as a BIOS floppy; QEMU's default firmware loads the sector at address 0x7C00 and executes it in 16-bit real mode.
• build/ and nadir.img are generated artifacts ignored by git. make clean removes them.
• The C kernel builds with plain host gcc and freestanding flags for now (see Makefile); a dedicated x86-64-elf cross-compiler is the planned next step.
• Running over SSH or in a bare terminal? make run needs a window; boot headless instead:

  qemu-system-x86_64 -fda nadir.img -display curses


  Quit with Ctrl-A then X.

Troubleshooting

Symptom	Cause
Boot failed: not a bootable disk	The first 512 bytes of nadir.img are not a valid boot sector (they must end with the 0xAA55 signature). Re-run make and check it completes without errors.
Black screen / blinking cursor	The boot sector only speaks legacy BIOS (int 0x10 text mode). This works out of the box with QEMU's default SeaBIOS firmware but will not boot under UEFI-only firmware (or UEFI-only real hardware) unless legacy/CSM boot is enabled.
QEMU reboots in a loop after entering protected mode (or before any C output)	A triple fault in the boot chain: the CPU crashed with no IDT installed and reset itself. Boot with qemu-system-x86_64 -fda nadir.img -d int -no-reboot and read the fault (v=...) plus registers from the log.
No window appears under WSL2	Use the -display curses variant above. It should work in any terminal.

How booting works

1. The BIOS loads the 512-byte sector (kernel/arch/x86_64/boot.asm) at 0x7C00: it enables A20, loads the kernel to 0x10000, installs a flat GDT, and enters 32-bit protected mode.
2. The stage-2 entry (kernel/arch/x86_64/entry.asm) checks for long mode, identity-maps the first 1 GB with 2 MB pages, enables paging, jumps to 64-bit code, zeroes BSS, and calls kmain.
3. kmain (kernel/core/kmain.c) prints through the VGA text console (kernel/arch/x86_64/console.c, include/console.h) and halts.

The full memory map lives in the header comment of kernel/arch/x86_64/boot.asm.

Contributing

Every contribution is welcome. Please fork and send a pull request if you wish to contribute. You will be credited at the end of this very file. Please see the CONTRIBUTING file for more information.

License

This software is released under the MIT license. See the LICENSE file for details.
